| Category | Parameter | Specification |
|---|---|---|
| General | Brand | Luminous |
| General | Product SKU / Model | LD2000T |
| General | UPS Type | True Double-Conversion Online UPS with Built-in Isolation Transformer |
| General | Topology | Single Phase Input / Single Phase Output |
| Capacity | Rated Capacity | 2000 VA / 1600 W |
| Electrical – Output | Output Voltage | 230 V AC (configurable: 200 / 220 / 240 V) |
| Electrical – Output | Output Power Factor | ~0.8 |
| Electrical – Output | Output Waveform | Pure Sinewave (double-conversion) |
| Electrical – Input | Input Voltage Range | Wide range: 110 V – 300 V AC |
| Electrical – Input | Input Frequency Range | 50 / 60 Hz |
| Battery | Battery Type | External SMF / VRLA supported |
| Battery | Battery DC Bus Voltage | ~96 V DC |
| Battery | Number of Batteries Required | Typically 8 (external, user-supplied) |
| Protection | Isolation Transformer | Built-in for enhanced protection, surge rejection, and clean output |
| User Interface | Display / Controls | LCD status and control indications |
| Technology & Features | Control System | Microprocessor-based control |
| Technology & Features | Power Factor Correction | Input PFC supported |
| Technology & Features | Bypass | Automatic bypass |
| Technology & Features | Generator Compatibility | Yes |
| Technology & Features | Charging Control | Selectable charging current |
| Technology & Features | Emergency Power-Off (EPO) | Supported |
| Physical | Dimensions (Approx.) | ~397 × 145 × 332 mm |
| Physical | Weight (Approx.) | ~21 kg |
| Warranty | Warranty Coverage | Typically 24 months on UPS electronics |

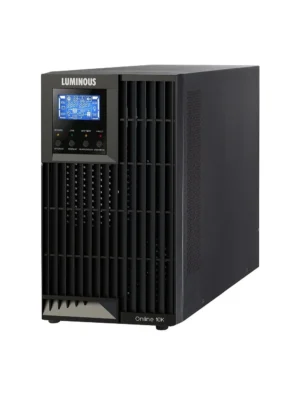

Luminous Online UPS 2 KVA with Isolation Transformer LD2000T 96V
The Luminous LD2000T Online UPS with Isolation Transformer is a robust 2 KVA true online double-conversion UPS featuring a built-in isolation transformer to provide clean and stable power to sensitive equipment. With wide input voltage tolerance, external battery support (≈8 batteries at ~96 V DC), LCD status display, and advanced microprocessor control, it ensures high reliability and extended backup for servers, networking systems, and critical electronics in environments with unstable mains supply.
| KVA Rating | 2 KVA |
|---|
