| Category | Parameter | Specification |
|---|---|---|
| General | Brand | Luminous |
| General | Product SKU / Model | LD2000 |
| General | UPS Type | True Double-Conversion Online UPS |
| Capacity | Rated Capacity | 2000 VA / 1600 W |
| Electrical – Input | Input Voltage Range | Wide range: 110 V – 300 V AC |
| Electrical – Input | Input Frequency Range | 40 Hz – 60 Hz |
| Electrical – Output | Output Waveform | Pure Sinewave |
| Electrical – Output | Output Power Factor | 0.8 |
| Electrical – Output | Current Crest Ratio | ~3:1 |
| Battery | Battery Configuration | External battery bank required |
| Battery | Battery Type Compatibility | SMF VRLA / Tubular (user-selected) |
| Battery | DC Bus Voltage | 72 V DC |
| Battery | Charging Current | Selectable, typically up to ~6 A |
| Technology & Protection | Control System | Microprocessor-based control |
| Technology & Protection | Power Factor Correction | Input PFC supported |
| Technology & Protection | Generator Compatibility | Yes |
| Technology & Protection | Bypass | Automatic bypass |
| Technology & Protection | Emergency Power Off (EPO) | Supported |
| Physical | Dimensions (D × W × H) | ~397 × 145 × 220 mm |
| Physical | Weight (Approx.) | ~6.8 kg |
| Applications | Typical Use Cases | Servers, computers, networking gear, workstations, ATMs, and other critical electronics requiring uninterrupted power |

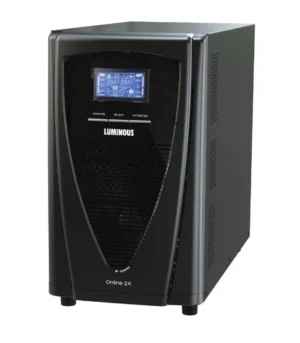

Luminous Online UPS 2 KVA LD 2000 72 V
GST Invoice AvailableFree Shipping
The Luminous LD2000 Online UPS (2 KVA, 72 V) is a true online double-conversion UPS designed to provide clean, uninterrupted pure sinewave power and protect critical equipment from outages and voltage fluctuations. With a wide input voltage range, microprocessor control, and external battery compatibility, it ensures stable backup performance for servers, IT systems, and sensitive electronics in commercial and industrial environments.
2 Years UPS Warranty1 Year Battery Warranty
