| Category | Parameter | Specification |
|---|---|---|
| General | Brand | Luminous |
| General | Product SKU / Model | LD6000/INX |
| General | UPS Type | True Double-Conversion Online UPS |
| Capacity | Rated Capacity | 6000 VA / 4800 W |
| Electrical – Output | Output Power Factor | 0.8 |
| Electrical – Output | Output Waveform | Pure Sinewave |
| Electrical – Output | Current Crest Ratio | 3:1 |
| Electrical – Input | Input Voltage Range | Wide range: 110 V – 300 V AC |
| Electrical – Input | Input Frequency Range | 40 Hz – 60 Hz |
| Efficiency | Efficiency (AC Mode) | ~90–92 % |
| Battery | Battery Type | External SMF / VRLA compatible |
| Battery | Battery DC Bus Voltage | 192 V DC |
| Battery | Number of Batteries Required | Typically 16 (external, user-supplied) |
| User Interface | Display / Indications | Multifunction LCD with status indicators |
| Technology & Features | Generator Compatibility | Yes (wide input voltage tolerance) |
| Technology & Features | UPS Topology | Double-conversion online |
| Physical | Dimensions (D × W × H) | ~369 × 190 × 318 mm |
| Physical | Weight (Approx.) | ~12 kg |
| Warranty | Warranty Coverage | Typically 24 months on UPS electronics |

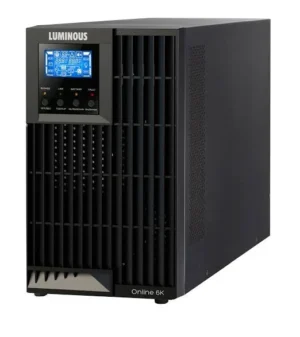

LUMINOUS LD6000-INX Online Ups, For Commercial, 6 KVA
GST Invoice AvailableFree Shipping
The Luminous LD6000/INX 6 KVA Online UPS is a high-capacity, true double-conversion UPS designed to deliver pure sinewave power and robust protection for mission-critical equipment such as servers, networking gear, workstations, ATMs, and industrial systems. With a wide input voltage range, microprocessor control, and external battery support at 192 V DC, it ensures reliable, uninterrupted power backup and excellent performance even during severe mains fluctuations.
2 Years UPS Warranty1 Year Battery Warranty
| KVA Rating | 6KVA |
|---|
