| Category | Parameter | Specification |
|---|---|---|
| General | Brand | Luminous |
| General | Product SKU / Model | LD3000-Pro |
| General | UPS Type | True Double-Conversion Online UPS |
| Capacity | Rated Capacity | 3000 VA / ~2700 W |
| Electrical – Output | Output Phase | Single-Phase |
| Electrical – Output | Output Voltage | 230 V AC (Nominal) |
| Electrical – Output | Output Power Factor | ~0.9 |
| Electrical – Output | Output Waveform | Pure Sinewave |
| Electrical – Input | Input Voltage Range | Wide range (typically ~110 V – 300 V AC) |
| Electrical – Input | Input Frequency | ~50 / 60 Hz |
| Efficiency | Typical Efficiency | > 88 % |
| Battery | Battery Configuration | External batteries required (user-supplied) |
| Battery | Battery DC Bus Voltage | ~72 V DC (typical for 3 kVA UPS) |
| Technology & Controls | Control System | Microprocessor-based control |
| Technology & Controls | Power Factor Correction | Input PFC supported |
| Technology & Controls | Bypass | Automatic bypass |
| Technology & Controls | Generator Compatibility | Yes |
| Physical | Dimensions (Approx.) | ~397 × 145 × 220 mm |
| Physical | Weight (Approx.) | ~7.4 kg |

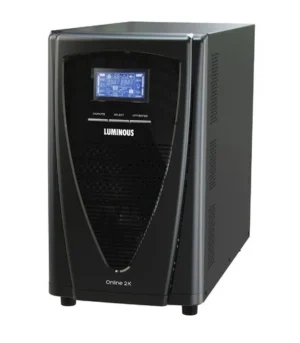

Luminous LD3000-Pro Online UPS
GST Invoice AvailableFree Shipping
The Luminous 3KVA – 72V Online UPS | LD3000 (LD3000-Pro) is a true online double-conversion UPS delivering pure sinewave output and high-quality power for critical systems such as servers, networking equipment, workstations, and industrial appliances. With a wide input voltage tolerance, high output power factor, and advanced microprocessor control, it ensures reliable uninterrupted backup during outages and severe mains fluctuations — ideal for IT, commercial, and industrial environments.
2 Years UPS Warranty1 Year Battery Warranty
