| Category | Parameter | Specification |
|---|---|---|
| General | Brand | Luminous |
| General | Product SKU / Model | LD10000-Pro |
| General | UPS Type | True Double-Conversion Online UPS |
| General | Topology | Single Phase Input / Single Phase Output |
| Capacity | Rated Capacity | 10,000 VA / 9,000 W |
| Electrical – Output | Output Voltage | 220 V AC (configurable: 200 / 230 V) |
| Electrical – Output | Output Frequency | 50 / 60 Hz ± 3 Hz |
| Electrical – Output | Output Power Factor | 0.9 |
| Electrical – Output | Output Waveform | Pure Sine Wave |
| Electrical – Output | Load Crest Ratio | 3:1 |
| Electrical – Output | Output Voltage Distortion (THD) | < 3 % |
| Electrical – Input | Input Voltage Range | 110 V – 300 V AC |
| Electrical – Input | Input Frequency Range | 40 Hz – 60 Hz |
| Electrical – Input | Input Power Factor | > 0.99 |
| Efficiency | Full Load Efficiency | > 88 % |
| Battery | Battery Type | External SMF / VRLA compatible |
| Battery | DC Bus Voltage | 192 V DC |
| Battery | Maximum Charging Current | ~6 A |
| User Interface | Display / Controls | Multi-function LCD status & control console |
| User Interface | Optional Communication | SNMP / Network Management Card |
| Technology & Features | Control System | Microprocessor-based control |
| Technology & Features | Power Factor Correction | Input PFC supported |
| Technology & Features | Bypass | Automatic bypass |
| Technology & Features | Generator Compatibility | Yes |
| Technology & Features | Emergency Power Off (EPO) | Supported |
| Physical | Dimensions (Approx.) | ~442 × 190 × 318 mm |
| Physical | Weight (Approx.) | ~16 kg |

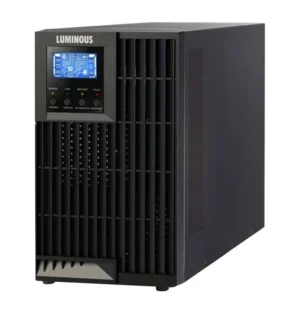

Luminous LD10000-Pro Online UPS
GST Invoice AvailableFree Shipping
The Luminous LD10000-Pro Online UPS is a high-capacity true online double-conversion UPS designed to provide pure sinewave backup power with a 0.9 power factor for mission-critical systems like servers, networking hardware, and industrial electronics. It features wide input voltage tolerance, microprocessor control, and support for an external 192 V battery bank for extended runtime, ensuring reliable, uninterrupted power protection in environments with unstable mains supply.
2 Years UPS Warranty1 Year Battery Warranty
