| Category | Parameter | Specification |
|---|---|---|
| Presentation | Product Description | Reliable rack power distribution designed to increase manageability and efficiency in the data center. Supports (12) C13 input/output connections with real-time remote monitoring of connected loads. User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment. |
| Commercial | Lead Time | Usually in Stock |
| Main | Colour | Black |
| Main | Product / Component Type | PDU |
| Main | PDU Type | Basic |
| Main | Cord Length | 2.49 m |
| Main | Number of Cables | 1 |
| Main | Provided Equipment | Installation Guide, Rack Mounting Brackets |
| Complementary | Input Voltage | 200 V / 208 V / 230 V |
| Complementary | Output Voltage | 208 V / 230 V |
| Complementary | Height | 44 mm |
| Complementary | Width | 447 mm |
| Complementary | Depth | 57 mm |
| Complementary | Net Weight | 2.05 kg |
| Complementary | Mounting Location | Front / Rear |
| Complementary | Mounting Preference | No Preference |
| Complementary | Input Plug Type | IEC 60320 C20 |
| Complementary | Mounting Mode | Rack-mounted |
| Complementary | Rack Units | 1U |
| Complementary | Mounting Position | Horizontal |
| Complementary | Input Current Limits | 16 A |
| Complementary | Load Capacity | 3680 VA |
| Complementary | Network Frequency | 50 / 60 Hz |
| Complementary | Outlet Type & Quantity | 12 × IEC 60320 C13 |
| Environment | Product Certifications | cUL Listed / CE / UL Listed / VDE / Queensland Australia |
| Environment | Standards | UL 60950 |
| Environment | Operating Temperature | 0 to 45 °C |
| Environment | Operating Relative Humidity | 0 to 95 % |
| Environment | Operating Altitude | 0 to 10,000 ft |
| Environment | Storage Temperature | -25 to 65 °C |
| Environment | Storage Relative Humidity | 0 to 95 % |
| Environment | Storage Altitude | 0 to 15,240 m |
| Packing Units | Unit Type of Package | PCE |
| Packing Units | Units per Package | 1 |
| Packing Units | Package Height | 7 cm |
| Packing Units | Package Width | 46.4 cm |
| Packing Units | Package Length | 22.9 cm |
| Packing Units | Package Weight | 3.632 kg |
| Contractual Warranty | Warranty | 2 Years – Repair or Replace |

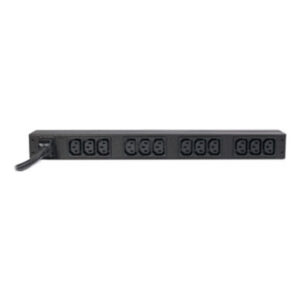

APC NetShelter Basic Rack PDU, 1U, 1 phase, 3.7kW 230V 16A or 3.3kW 208V 16A, 12 C13 outlets, C20 cord
GST Invoice AvailableFree Shipping
Priyadarsini is a trusted and authorized supplier of APC rack PDU Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
2 Years UPS Warranty1 Year Battery Warranty
| KVA Rating | 3.7kW 230V 16A or 3.3kW 208V 16A, |
|---|
