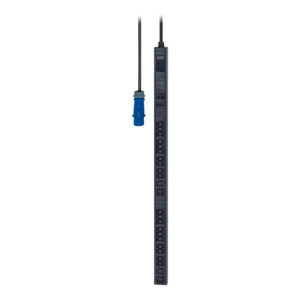

APC Easy Basic Rack PDU, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 C13 and 4 C19 outlets, IEC60309 2P+E inlet

GST Invoice AvailableFree Shipping

Priyadarsini is a trusted  and authorized supplier of APC Rack PDU. APC Easy Basic Rack PDU EPDU1132B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). EPDU1132B has IEC 309 32A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

2 Years UPS Warranty1 Year Battery Warranty
SKU: EPDU1132B Category: Brand:
Category Parameter Specification
Main Colour Black
Main Product / Component Type PDU
Main PDU Type Basic
Main Cord Length 3.00 m
Main Number of Cables 1
Main Provided Equipment Installation Guide, Toolless Mounting Kit, Vertical Mounting Brackets
Complementary Input Voltage 200 V / 208 V / 230 V
Complementary Output Voltage 230 V
Complementary Height 117.5 cm
Complementary Width 6.2 cm
Complementary Depth 4.44 cm
Complementary Net Weight 3.58 kg
Complementary Mounting Location Side
Complementary Mounting Preference No Preference
Complementary Input Plug Type IEC 60309, 32 A, 2P + E
Complementary Mounting Mode Rack-mounted
Complementary Rack Units 0U
Complementary Mounting Position Vertical
Complementary Input Current Limits 32 A
Complementary Load Capacity 7,360 VA
Complementary Network Frequency 50 / 60 Hz
Complementary Outlet Type & Quantity 20 × IEC 60320 C13, 4 × IEC 60320 C19
Environment Product Certifications CE / TÜV
Environment Operating Temperature 0 to 45 °C
Environment Operating Relative Humidity 5 to 95 %
Environment Operating Altitude 0 to 10,000 ft
Environment Storage Temperature -25 to 65 °C
Environment Storage Relative Humidity 5 to 95 %
Environment Storage Altitude 0 to 9,144 m
Packing Units Unit Type of Package PCE
Packing Units Units per Package 1
Packing Units Package Height 132 cm
Packing Units Package Width 16 cm
Packing Units Package Length 11 cm
Packing Units Package Weight 4.351 kg
KVA Rating

7.4kW, 230V, 32A
